About this product

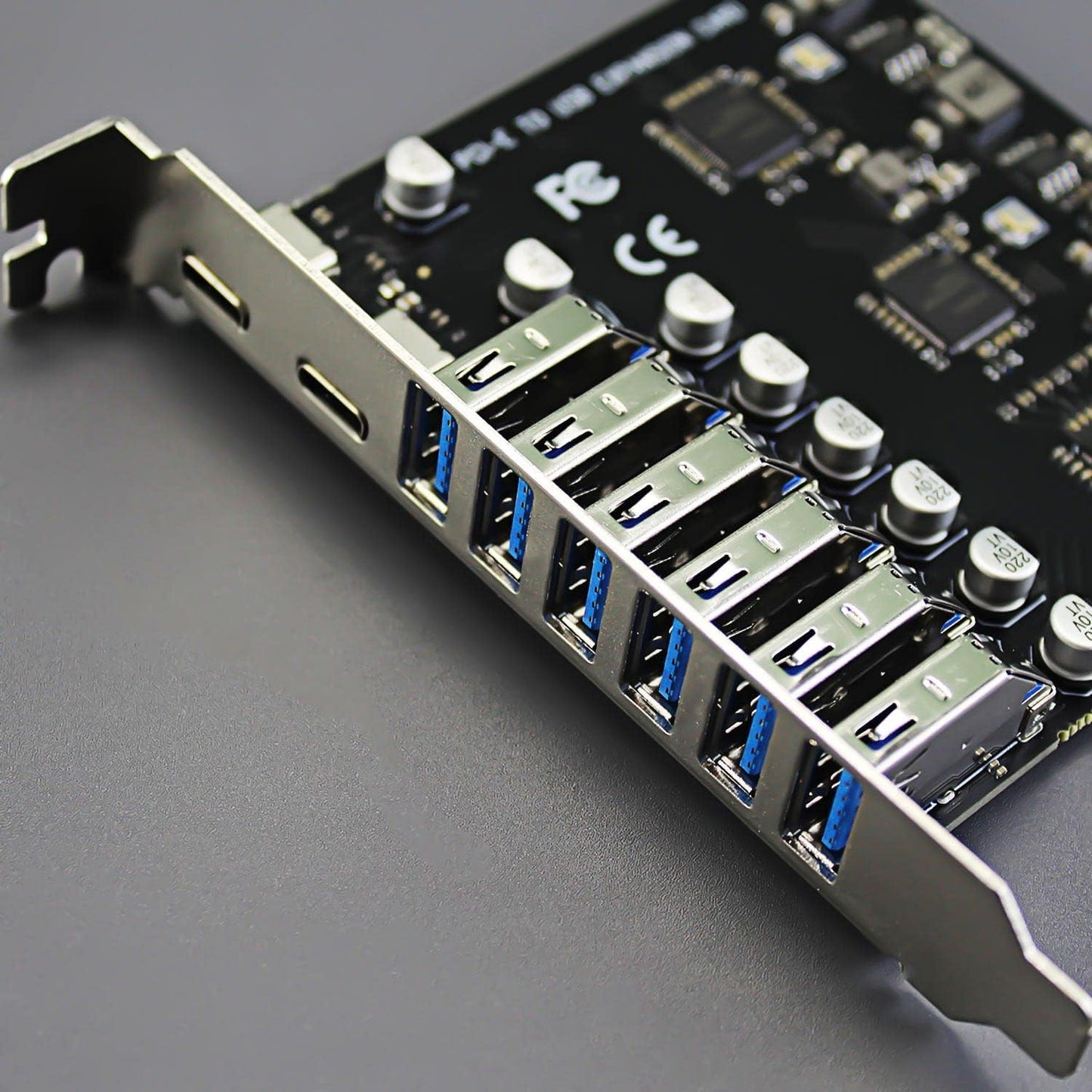

8-Port (2 Type-C+ 6 x Type-A) USB 3.0 5Gbps (non-dedicated) PCIe Expansion Card

8-Port PCI Express USB 3.0 Expansion Card (2x USB-C + 6x USB-A)

Expand your system's USB connectivity with this PCIe expansion card featuring 2 USB Type-C and 6 USB Type-A ports, powered by VL805+NEC720210 chipset for reliable performance.

Interface Specifications

  • Internal: PCI-Express 3.0 x1
  • External: 2x USB 3.0 Type-C + 6x USB 3.0 Type-A
  • Chipset: VL805+NEC720210
  • Mounting: 12cm Regular Profile Bracket

Power Specifications

  • Total Power Consumption: 30 Watts
  • USB-C Ports (2x): 10W (5V/2A)
  • USB-A Ports (1-3): 10W (5V/2A)
  • USB-A Ports (4-6): 10W (5V/2A)
  • Charging Limitation: 5V/0.5A max per port (No fast charging support)

Performance

  • PCIe 3.0 x1: 8Gbps total bandwidth
  • PCIe 2.0 x1: 4Gbps total bandwidth
  • Bandwidth shared across all 8 ports

Device Support

  • Keyboards and Mice
  • Speakers
  • KVM switches
  • USB Hubs
  • USB Flash Drives
  • Printers
  • High Power USB 3.0 devices
