About this product

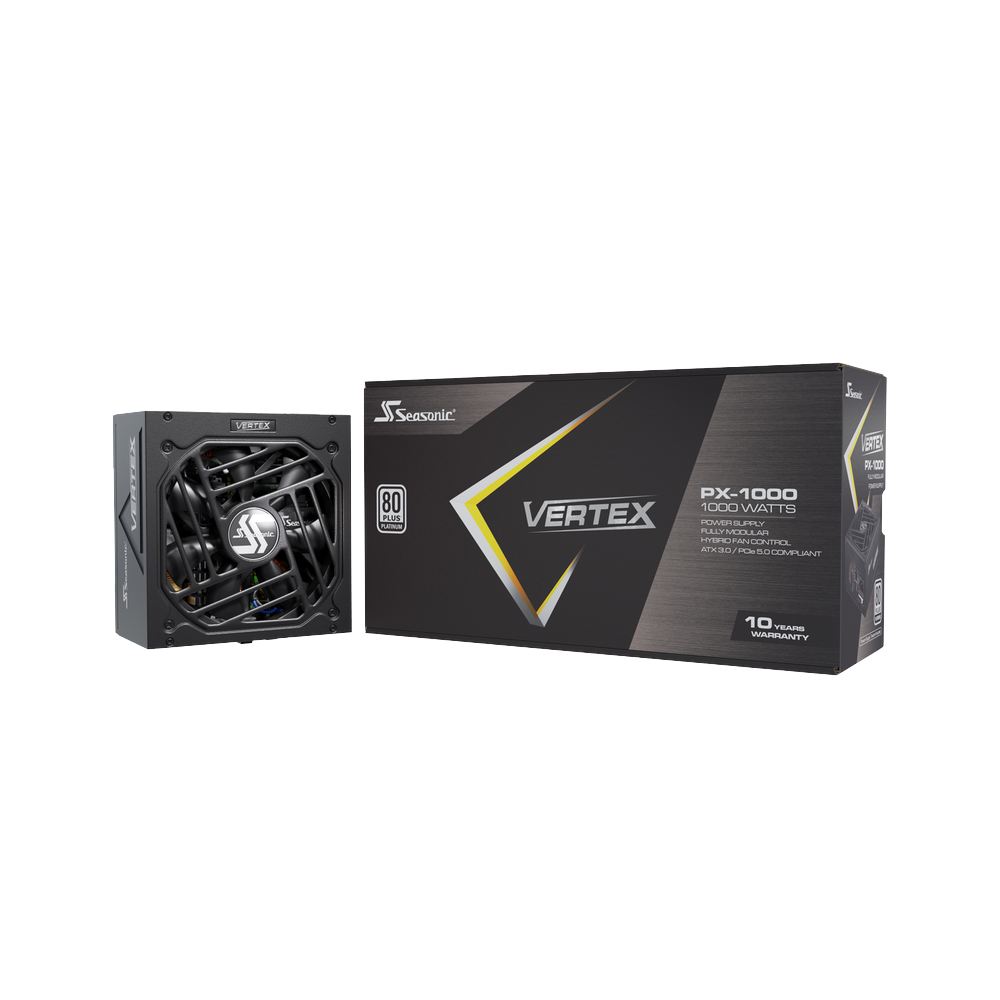

Seasonic VERTEX PX-1000, 1000W 80+ Platinum, ATX 3.0 / PCIe 5.0 Compliant Power Supply

Technical Specifications
80PLUS
Platinum
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Fan Information
Fan Size
135 mm
Fan Control
Digital Fan Control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 oC, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Flat black cables
Electrical Features
Operating Temperature
0 - 50 oC (derating from 100 % to 80 % from 40 oC to 50 oC)
MTBF at 25 oC, excl. fan
100,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH, Power Output
AC Input
Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V / +5 V /+12 V / -12 V / +5 VSB
Maximum Power
25 A /25 A / 83 A / 0.3 A / 3 A
125 W / 125 W / 996 W / 3.6 W / 15 W
Total continuous power
1000 W, Item Dimension (L"xW"xH")
5 x 14 x 8

Weight
6.02 lbs

Warranty Information
12 years
